Hyperspectral Imaging for Ore Distinction

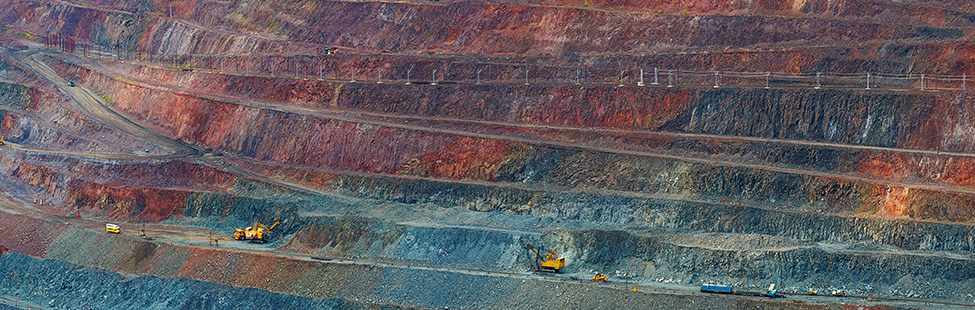

Metals like iron, copper and gold, as well as resources like coal and limestone are commonly extracted using the open-pit mining method. The planning of the extraction is divided into long-term, short-term, day-to-day and shift-to-shift planning. In the day-to-day activities, the planner decides based on prior sampling and drill cores which material from the broken stock is fed to the crusher or included in the processing plan to achieve the daily production rate.¹ Hyperspectral imaging of samples and mine fronts can considerably improve the planning process and lead to faster, more efficient, and precise ore grade determination. The successful implementation of in-mine quality mapping using hyperspectral imaging potentially supports several processes. These include maintaining ore grades within the desired range during mineral production, minimizing the level of contaminants for optimal ore processing and enabling a higher reliability in sending low-grade ore to the waste sites and thus to minimize operating cost.

It is predicted that hyperspectral imaging will play an important role in the future in optimizing mining short-term objectives. So far, real-time analytics, predictive machine learning and image analytics are being applied at only 35%, 38% and 37% of the mines respectively². Especially exploration, mine development and ore processing are lagging behind in the race for digitalization. An example of how hyperspectral data can be used in this context is presented here using results obtained from two independent studies using HySpex instrumentation.

Figure 1. Samples from two iron ore mines and one nickel mine located in Brazil were analyzed using the HySpex classic series VNIR and SWIR sensors covering the 400 – 2500 nm spectral range.

For the iron ore, the iron content of the samples varied between 68% - 24% with varying degrees of contaminants (left).³ The samples from the Nickel mine cover a range of 3% - 0.26% of Ni, differentiating between ore of varying grades, cover rock and waste (right).

The samples were used to create a site-specific spectral library (Figure 2), to be applied for e.g., UAV imagery analysis of large mining complexes. The analysis of the iron samples was performed using the hybrid ReSens+ analysis and was compared to the open source GFZ EnGeoMap feature-based analysis⁴ and the Spectral Angle Mapper (SAM).⁵ The nickel samples were analyzed similarly but were distinguished by sample quality instead of sample ID.

Figure 2. Spectral fingerprints of the iron samples (left) and nickel samples (right). Left: Aside from the samples with the lowest iron content (3 light grey & 11 dark grey), the iron-bearing ore samples spectra do not show a high spectral contrast or differentiating spectral features. An analysis based on feature wavelength position and depth is therefore not viable to distinguish the samples and represent ore grades efficiently.

The different analyses show how clearly all the samples can be distinguished by hyperspectral means (Figure 3). It also shows that for samples with a low spectral contrast, the feature-based analysis (EnGeoMap) is inferior to analyses that take the overall shape of the spectrum into account (ReSens+ and SAM). ReSens+ analyses show the highest accuracy in sample recognition and a higher tolerance for shadows and coarse areas. This allows for analyzing samples without prior preparation (e.g., grinding) but also for an application under real, harsher mine face conditions.³ The laboratory compiled spectral libraries can be utilized and applied to analyze spectral data from different platforms, e.g., mine face scans on-site or even satellite data to monitor the large-scale mining progress (Figure 4).

Figure 3. Mapping results and accuracies for the iron ore samples (upper) and the nickel ore samples (lower).

Figure 4. ReSens+ Analysis of freely available Copernicus Sentinel-2 data of a nickel mine in the Republic of Cuba, near Moa. The development of the pits and the high-grade ore (orange, yellow) along the edges of the individual activities are clearly visible showing the continuous depletion in the pits due to the extraction of the high-grade ore and the new development of extraction fronts growing outwards. See Figure 3 for color code.

References:

1. Blom, M., Pearce, A. R. & Stuckey, P. J. Short-term planning for open pit mines: a review. International Journal of Mining, Reclamation and Environment (2019). doi:10.1080/17480930.2018.1448248
2. EY. EY top 10 business risks facing mining and metals in 2019 - 20. Ernst & Young Global Limited, © 2018 EYGM Limited., EYG no. 012357-18Gbl (2018).
3. Koerting, F. M. (2021). Hybrid imaging spectroscopy approaches for open pit mining - Applications for virtual mine face geology [University of Potsdam]. https://doi.org/https://doi.org/10.25932/publishup-49909
4. Mielke, C., Koerting, F., Klos, F., Koellner, N. & Boesche, N. K. EnGeoMAP Tutorial. (2019).
5. Kruse, F. A. et al. The Spectral Image Processing System (SIPS): Software for integrated analysis of AVIRIS data. in JPL, Summaries of the Third Annual JPL Airborne Geoscience Workshop. Volume 1: AVIRIS Workshop 23–25 (1992)
