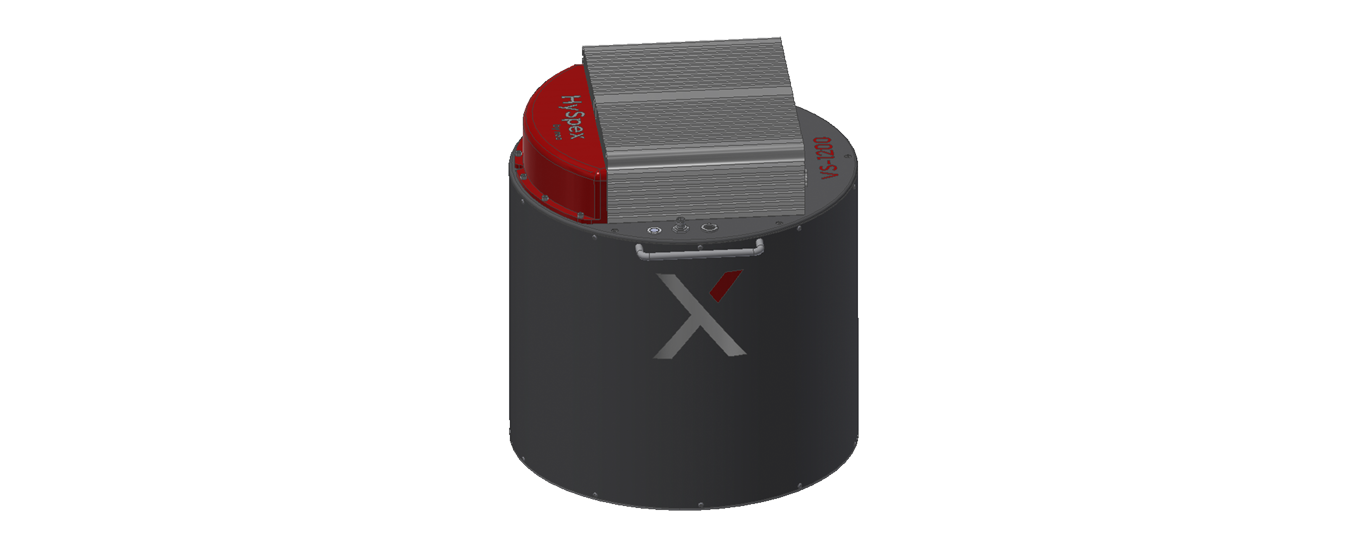

HySpex VS-1200
The HySpex VS-1200 hyperspectral camera is developed for airborne applications requiring extreme resolution in both VNIR and SWIR spectral regions.
The HySpex VS-1200 is a novel high-resolution instrument designed for airborne applications at altitudes greater than 400m.
The camera produces the highest scientific grade level data, commercially available, having FWHM less than 1.2 pixels spatially and less than 1.5 pixels spectrally. The combined VNIR-SWIR cube has coregistration errors, and smile and keystone of less than 10% of a pixel.
With 40 degrees FOV, the camera is ideal for mapping large areas with high accuracy and resolution.
The camera is delivered with an integrated high-performance IMU/GPS and data acquisition unit with removable storage bays as a standard. Existing navigation systems can also be integrated/utilized.

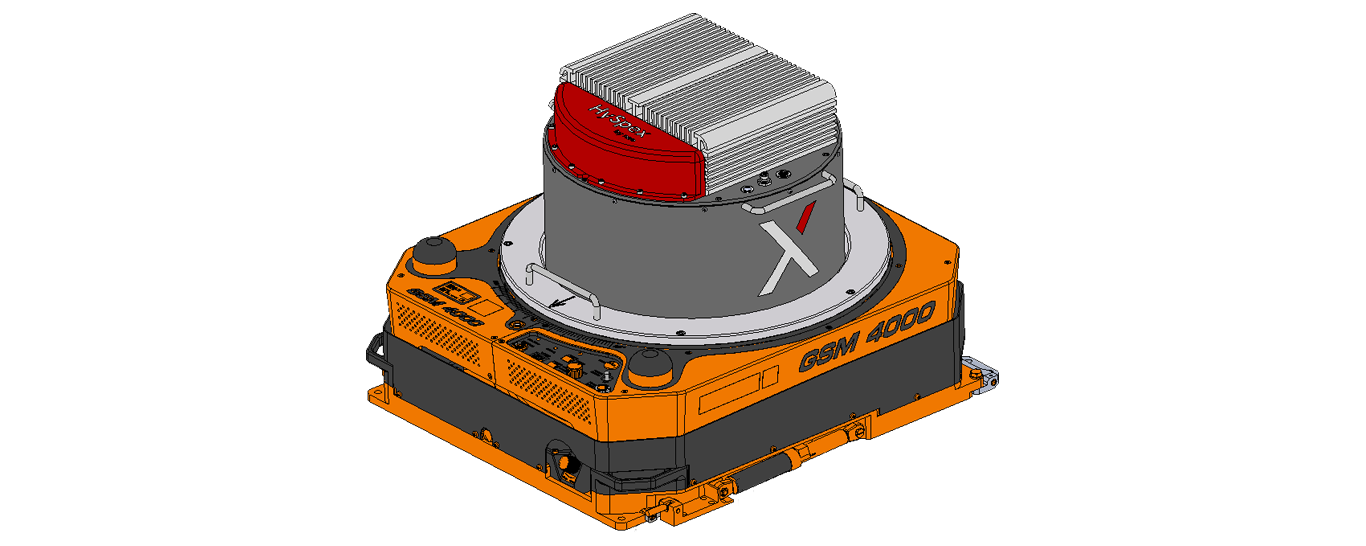

A standard passive damping solution is included as a part of the default delivery package, but mounting plates for active damping solutions, such as GSM4000 or PAV80 can be supplied.

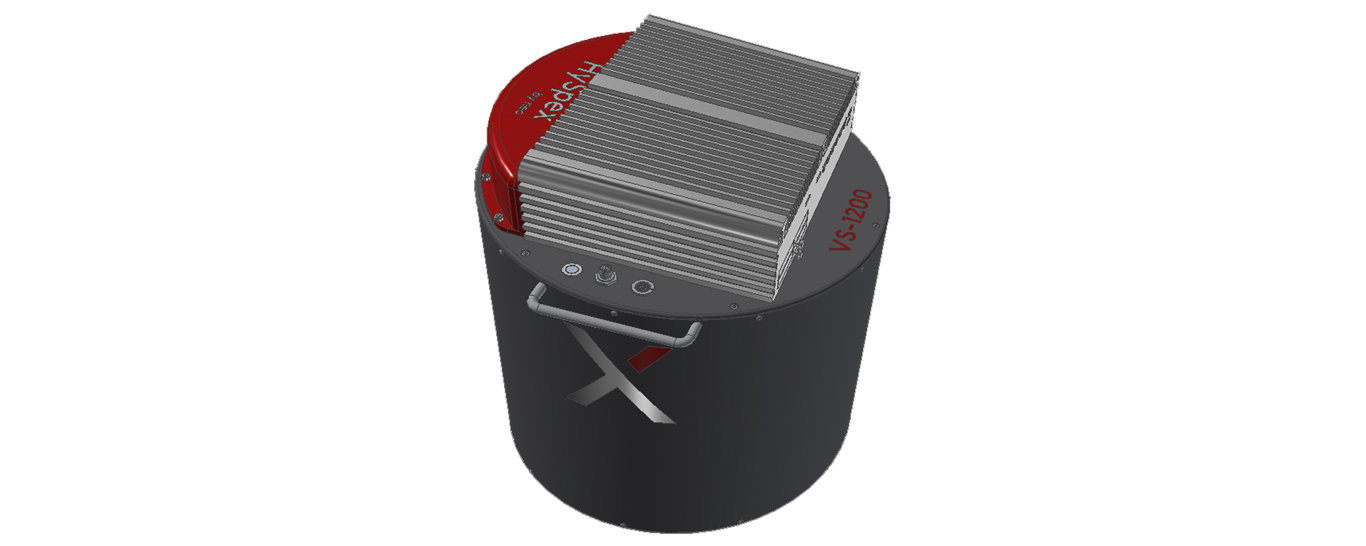

HySpex VS-1200
Main Specifications
| V-2400 | S-1200 | |
| Spectral range | 400 – 1000 nm | 950 – 2500 nm |
| Combined spectral range | 400 – 2500 | |
| Spatial pixels | 2400 | 1200 |
| Combined spatial pixels | 1200 | |
| Spatial resolution (pixels) | FWHM < 1.2 | FWHM < 1.2 |
| Spectral channels | 400/200 | 300 |
| Combined spectral channels | 680/490 | |
| Spectral resolution (pixels) | FWHM < 1.5 (in 400 band mode) |
FWHM < 1.5 |
| F-number | F1.8 | F1.9 |
| FOV | 40° | 40° |
| Combined FOV | 40° | |
| Pixel FOV across/along | 0.27/0.54 mrad | 0.54/0.54 mrad |
| Combined Pixel FOV across/along | 0.54/0.54 mrad | |
| Bit resolution (raw data) | 12 bit | 16 bit |
| Noise floor | 2.4 e- | 80 e- |
| Dynamic range | 4400 | 10000 |
| Peak SNR (at full resolution) | > 180 | > 900 |
| Peak SNR (merged cube) | > 240 | > 900 |
| Max speed (at full resolution) | 285 fps | 100 fps |
| Power consumption* | 150 W | |
| Dimensions (⌀–h)* | 373 – 398 mm | |
| Weight* | ~ 35 kg | |
*Including Data Acquisition Unit
Airborne Applications
High resolution and high speed, combined with low weight and power consumption, make HySpex cameras very well suited for airborne data acquisition. A typical airborne installation consists of the HySpex cameras coupled with an airborne data acquisition unit, a navigation system (IMU/GPS) and a mount- ing platform. Both actively stabilized and passive- ly damped mounting platforms can be supplied, as well as standard mounting plates with no damping. IMU/GPS solutions from leading manufacturers can be supplied and integrated with the cameras. Alternatively, HySpex systems can be interfaced with the customer’s existing navigational hardware.
Downloads
Datasheet coming soon.
